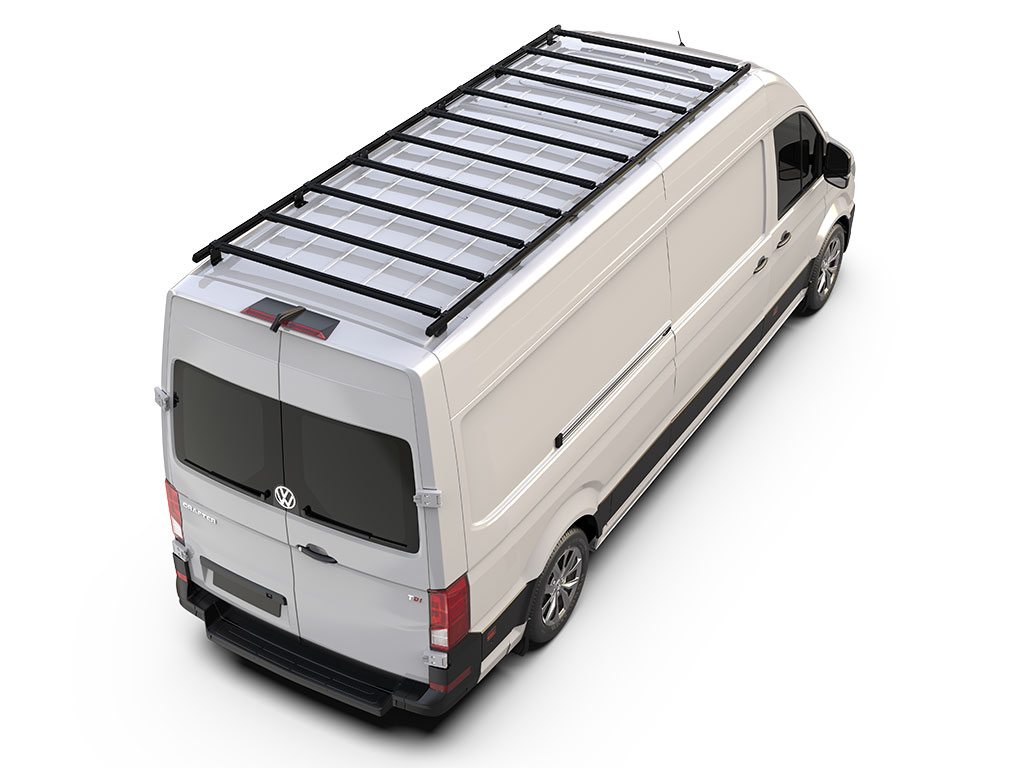

Compatible with Volkswagen Crafter (L4 H2 MWB ) (2017- Current) standard roof vans with a vehicle length of 6836mm / 269.1".
    Load-carrying area: 3928mm (154.6") x 1456mm (57.3").

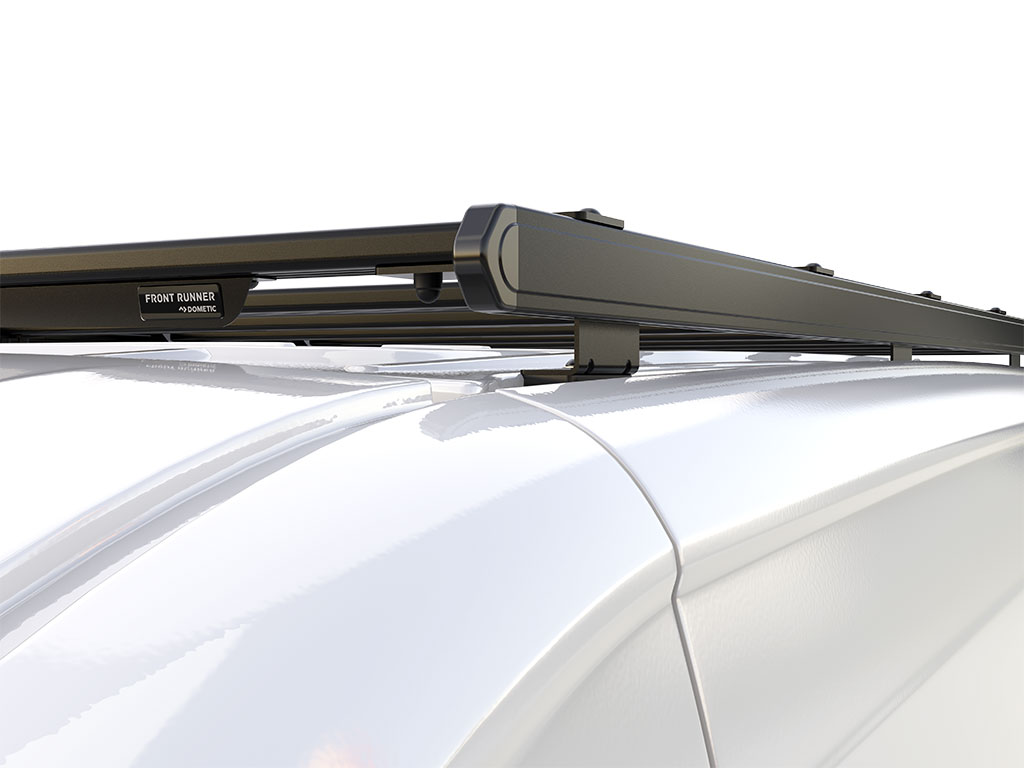

    Twelve (12) Mounting Feet secure into van's existing factory mounting points.
    Included Slat Bracket can be inverted for a lower profile at 116mm (4.6") height, or left in standard configuration at 158mm (6.2").
    Compatible with most Front Runner side mount accessories.
    Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
    Fitment guide and all mounting hardware are included. No drilling or modification required.
    All Front Runner racks are backed by a limited lifetime warranty.*

KVVC002T - Volkswagen Crafter (L4H2/ MWB/Standard Roof) (2017-Current) Slimpro Van Rack Kit - by Front Runner

Consisting of:
5x FAVF005 - Volkswagen Crafter Van Rack Foot Set / 65mm
1x FAVF006 - Volkswagen Crafter Van Rack Foot Set / 90mm
2x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps
5x RRNS1345 - Narrow Slat / 1345mm (Pair)
1x SPVT001 - Van Rack Side Profile / 1156mm
2x SPVT002 - Van Rack Side Profile / 1358mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
3928mm (154.6") L x 1456mm (57.3") W x 158mm (6.2")

Approximate Installed Weight: 45.63kg (100.6lbs)


Volkswagen Crafter Van Rack Kit heights are adjustable from 116mm (Z bracket inverted) to 158mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat.

The slat T slots and side profiles take standard M8 hex bolts top and bottom.


Shipping Dimensions:
Width: 300mm (12")
Length: 1805mm (71")
Height: 195mm (8")

Shipping Weight:
Weight: 44.35kg (98lbs)
