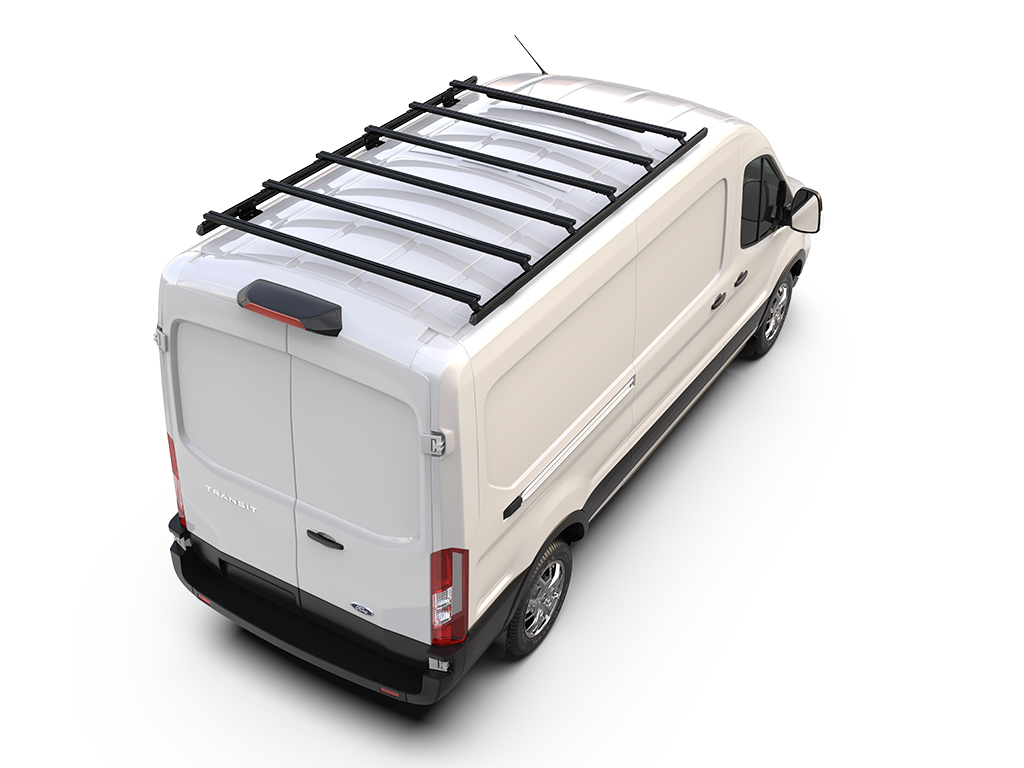

Compatible with Ford Transit (L2H2/130" WB) (2013-Current) medium roof vans with a vehicle length of 5531mm / 217.8".
    Load-carrying area: 2368mm (93") x 1470mm (57.9") .
    Six (6) Mounting Feet secure into van's existing factory mounting points.
    Compatible with most Front Runner side mount accessories.
    Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
    Fitment guide and all mounting hardware are included. No drilling or modification required.
    All Front Runner racks are backed by a limited lifetime warranty.*

KVFT001T - Ford Transit (L2H2/130" WB/Medium Roof) (2013-Current) Slimpro Van Rack Kit - by Front Runner

Consisting of:
3x FAVF003 - Ford Transit Van Rack Foot Set
1x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps
3x RRNS1425 - Narrow Slat / 1425mm (Pair)
2x SPVT001 - Van Rack Side Profile / 1156mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

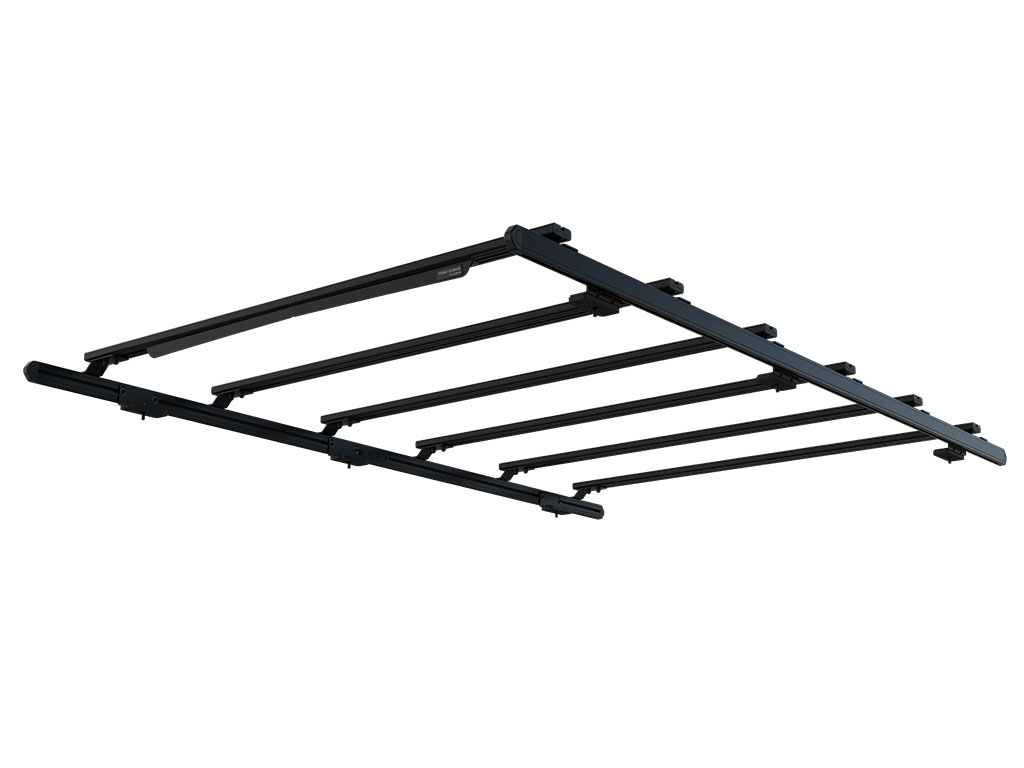

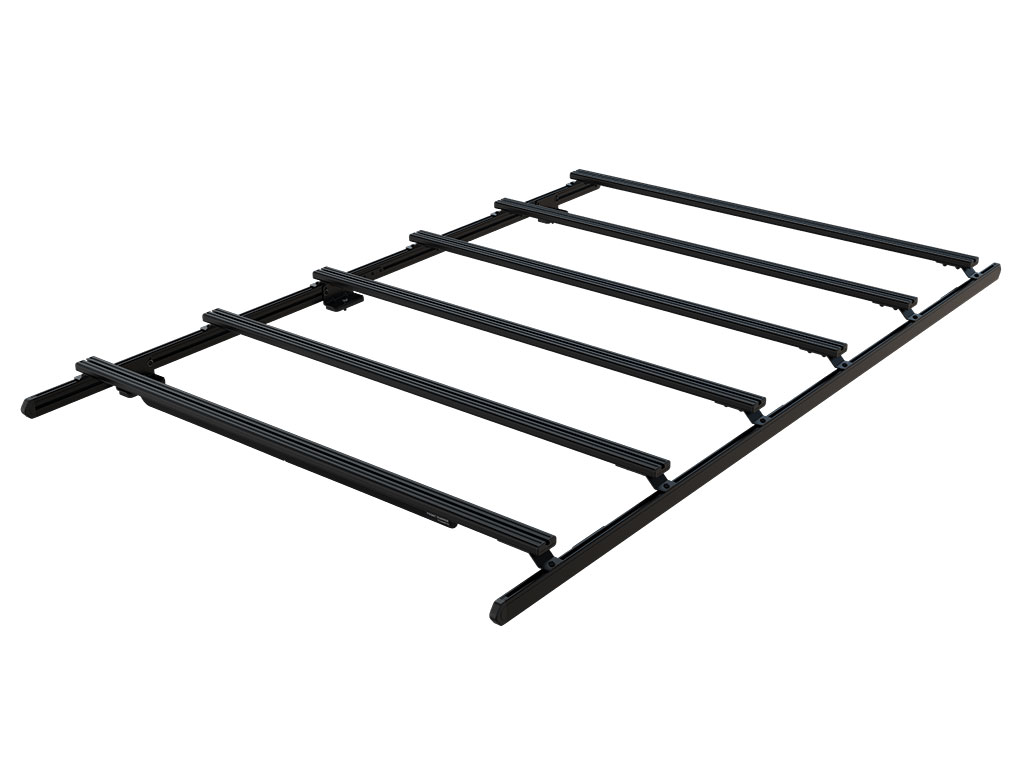

Assembled Rack Kit Dimensions:
2368mm (93") L x 1470mm (57.9") W x 123mm (4.8") H

Approximate Installed Weight: 26.59kg (58.62lbs)

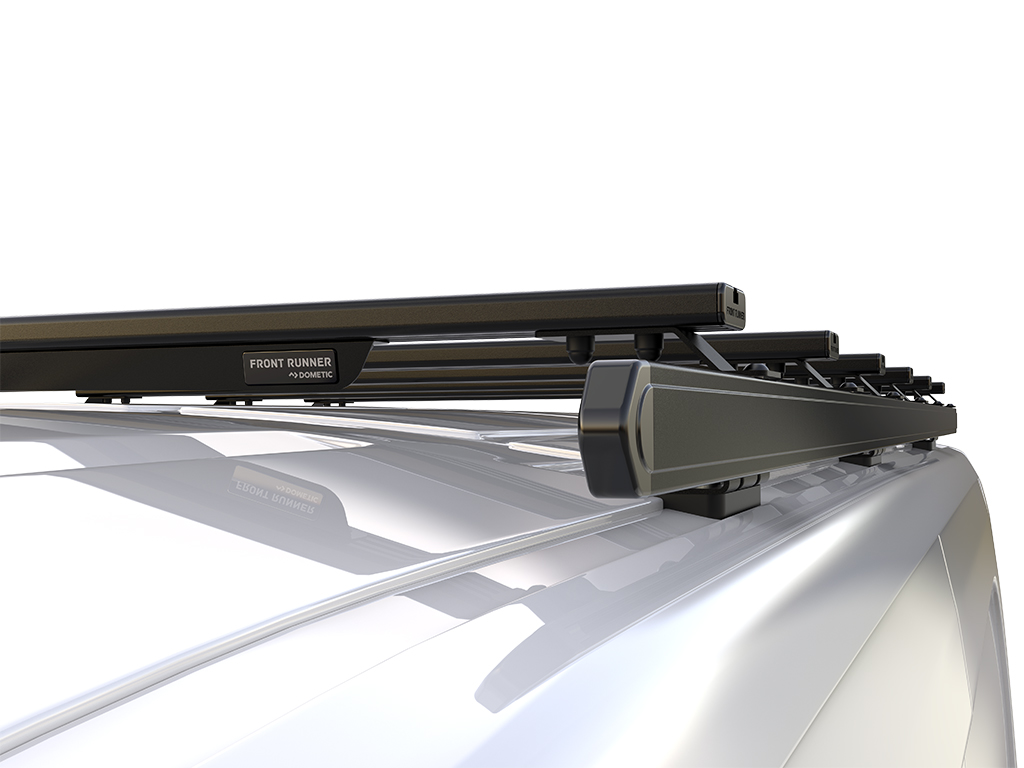

Ford Transit Van Rack Kit heights are 125mm from the bottom of the roof ditch to the top of the slat. (Z brackets can not be inverted) all measurements are taken from bottom of roof ditch to top of the rack slat.

The slat T slots and side profiles take standard M8 hex bolts top and bottom.

Shipping Dimensions:
Width: 300mm (12")
Length: 1805mm (71")
Height: 195mm (8")

Shipping Weight:
Weight: 29.35kg (65lbs)
