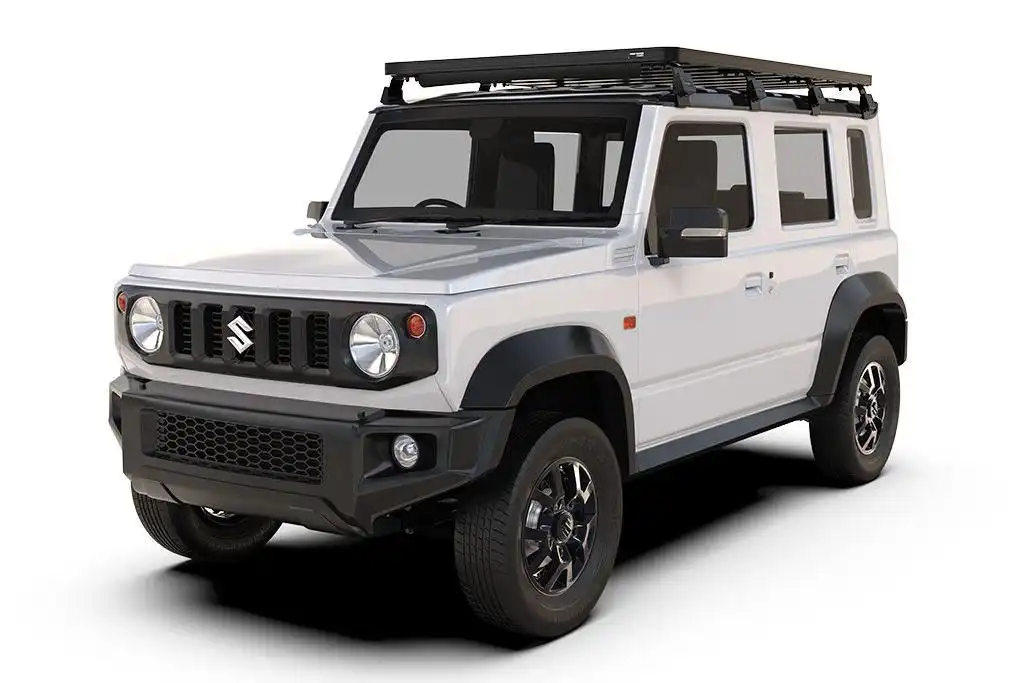

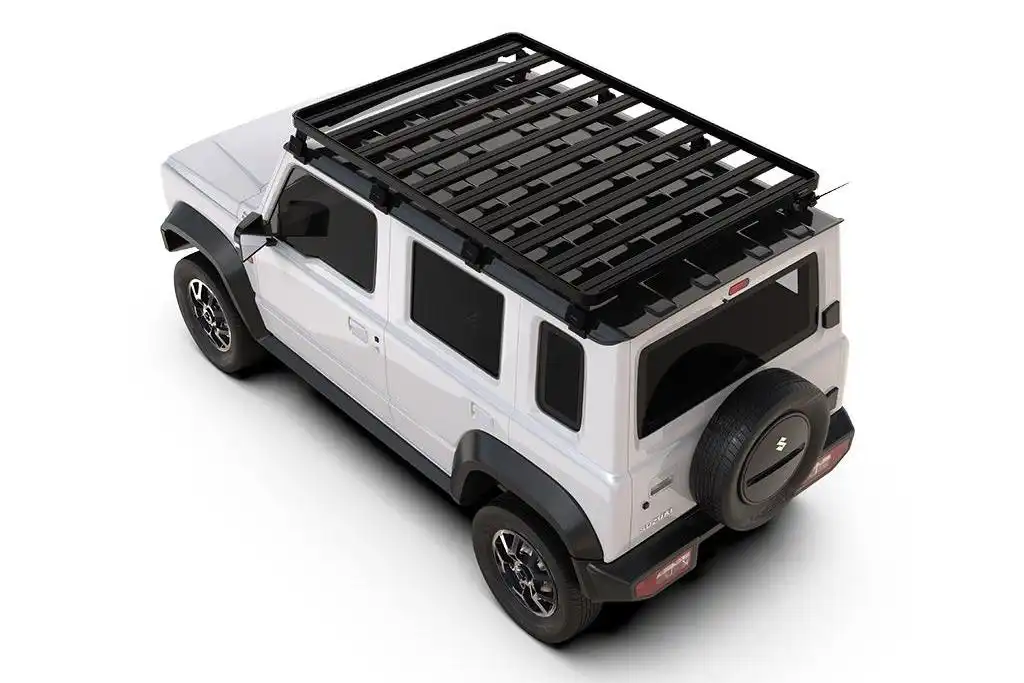

This 1964mm/77.3" long, full-size, Slimline II cargo carrying roof rack kit for the Suzuki Jimny 5 Door contains the Slimline II Tray and Wind Deflector, as well as 8 Gutter Mount Legs for mounting the Tray to the vehicle. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. Installs easily with no drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

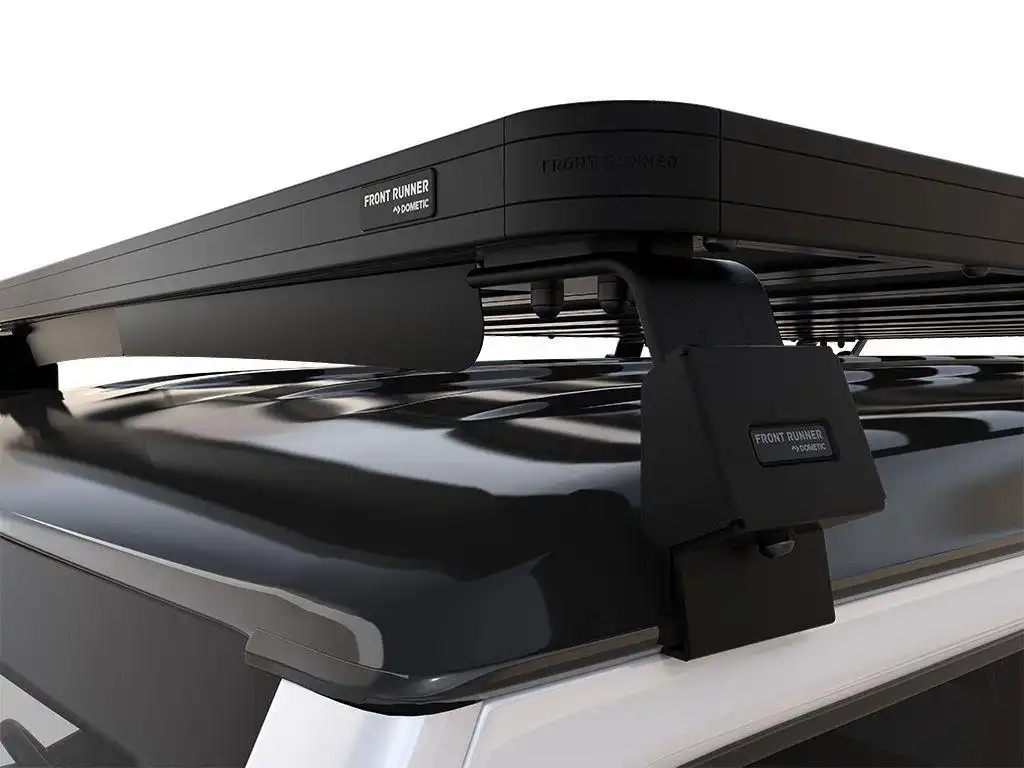

These Foot Rails contains 1 opening to access a Front Runner under rack mount table (1 smaller Pro Stainless Steel Prep Table Kit or 1 larger Pro Stainless Steel Camp Table Kit).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRSJ008T - Suzuki Jimny 5 Door (2023-Current) Slimline II Roof Rack Kit / Tall




Consisting of:


1x LASS027 - Leg Spacer 6mm (Pair)
4x LASS103 - No 3 Leg 155mm (Pair)
2x LASS121 - Universal Pinch Weld Strip / 6 Piece
1x RRSTG10 - SLII Tray - 1345mm(W)X1964mm(L)



Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel



Approximate Installed Weight: 38.14kg (84.08lbs)

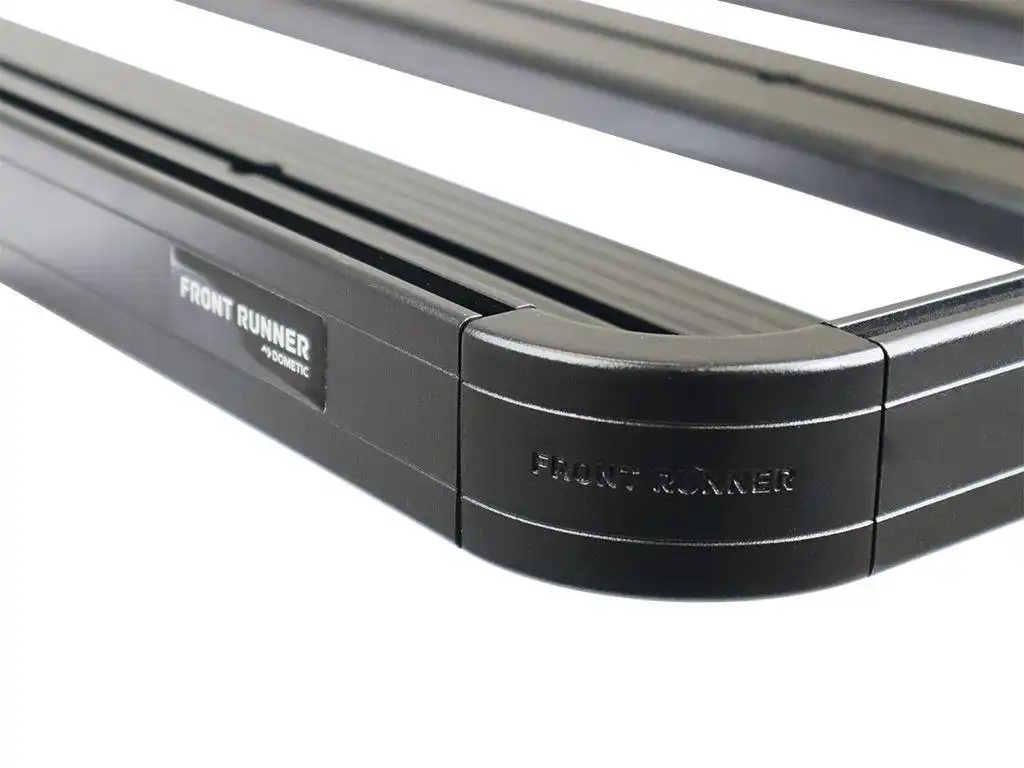

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width: 45mm (2")

Length: 1720mm (68")

Height: 275mm (11")



Shipping Weight:

Weight: 39kg (86lbs)
