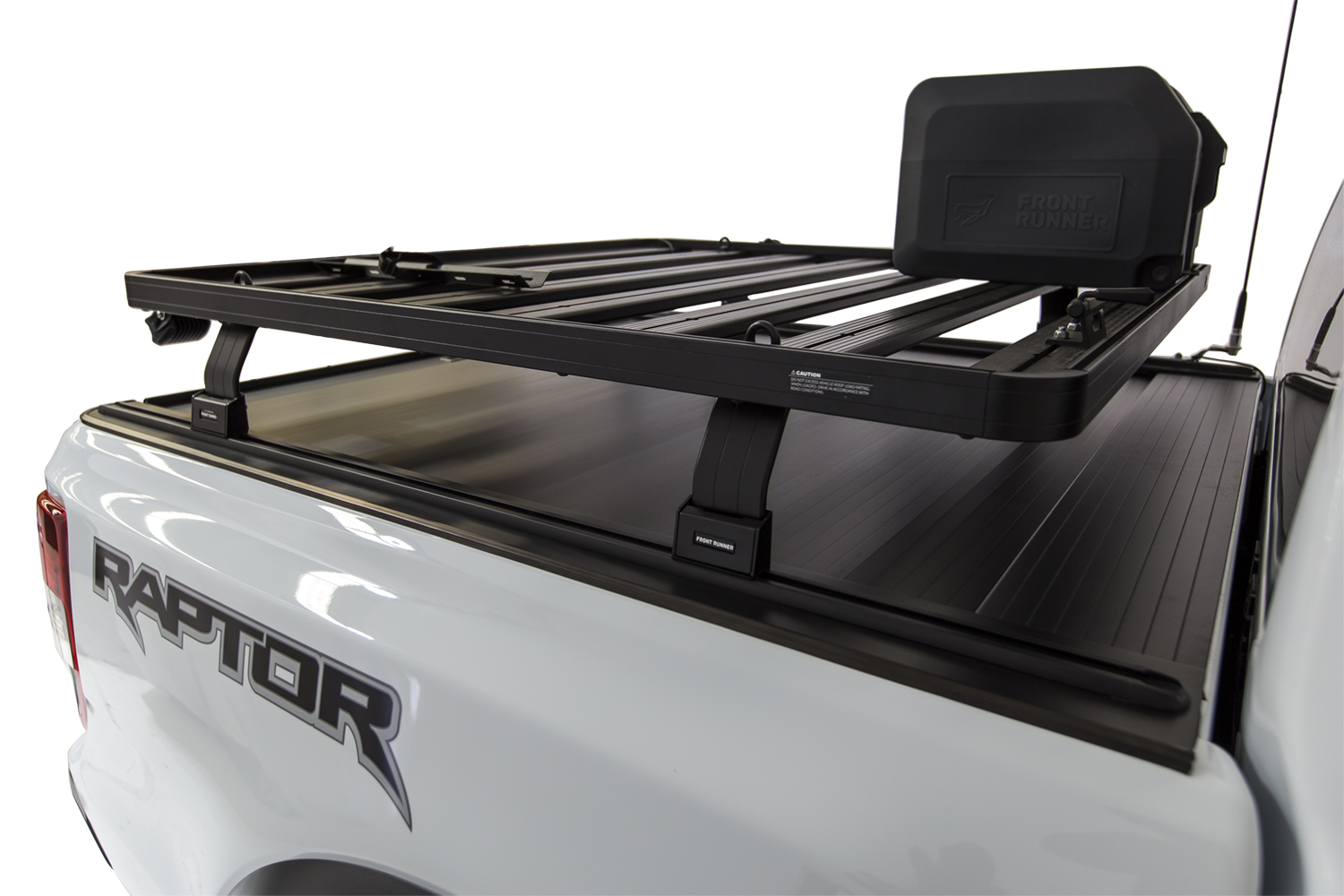

This kit creates a full-size rack that sits above your Pickup's load bed when fitted with a HSP Electric Roll R Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, and 4 Pickup Roll Top Leg Mounts that fit into the Tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.
Note: This kit is not compatible with the HSP Series 3 Roller Cover.

KRRT017T - HSP Electric Roll R Cover Slimline II Load Bed Rack Kit / 1425(W) X 1358(L) - by Front Runner




Consisting of:


2x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
1x TRCA009 - Canopy Tracks / 1400mm (L)



Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel



Approximate Installed Weight: 30.38kg (66.98lbs)

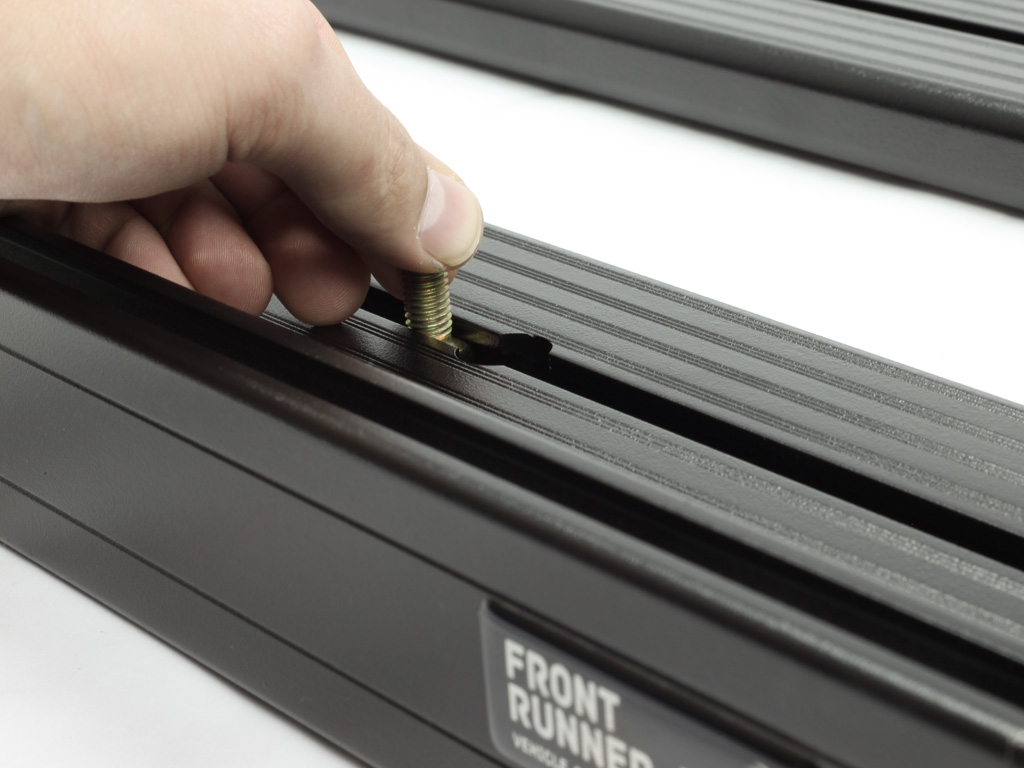

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width: 450mm (18")

Length: 1730mm (68")

Height: 260mm (10")



Shipping Weight:

Weight: 30.52kg (67lbs)
