Great performance, precise handling

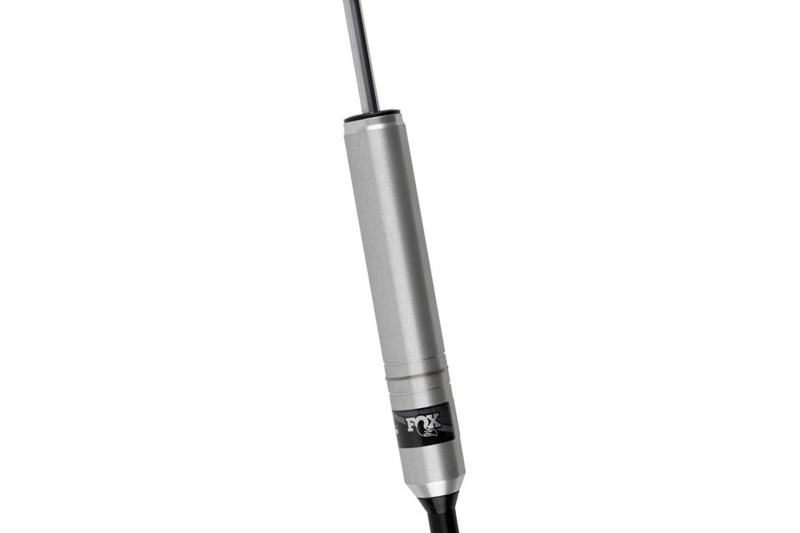

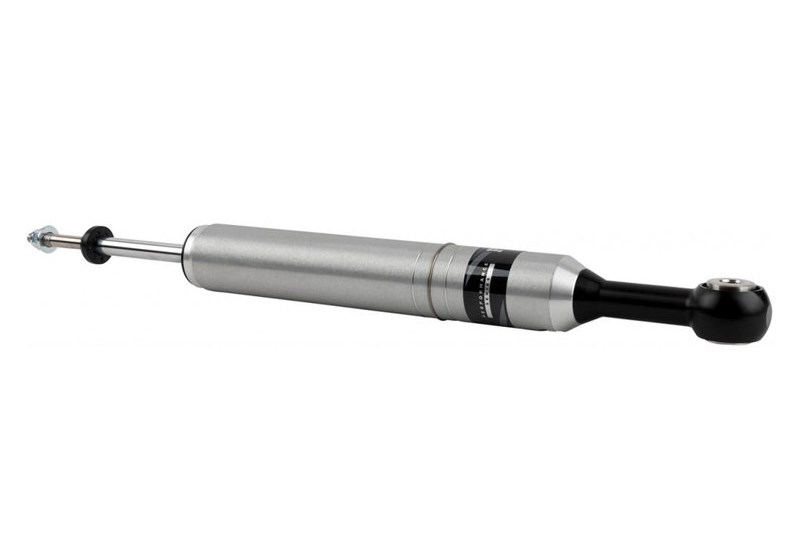

The Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. The precision, impact-extruded aluminum body is lightweight and rust resistant.

Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks,  allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift.

The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Specs:

    Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift
    Spring: Not included
    Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
    Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
    Body Plating: Clear-anodized for a durable finish
    Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
    Shaft: 5/8" hard chrome plated heat-treated alloy steel
    Piston: Race-developed high-flow piston design
    Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
    Bearing: Large diameter, heavy-duty spherical

Dimensions:

    Extended: 22.09"
    Compressed: 17.30"
    Travel: 4.79"

Mounts:

    Top mount: reuses stock mounting hardware

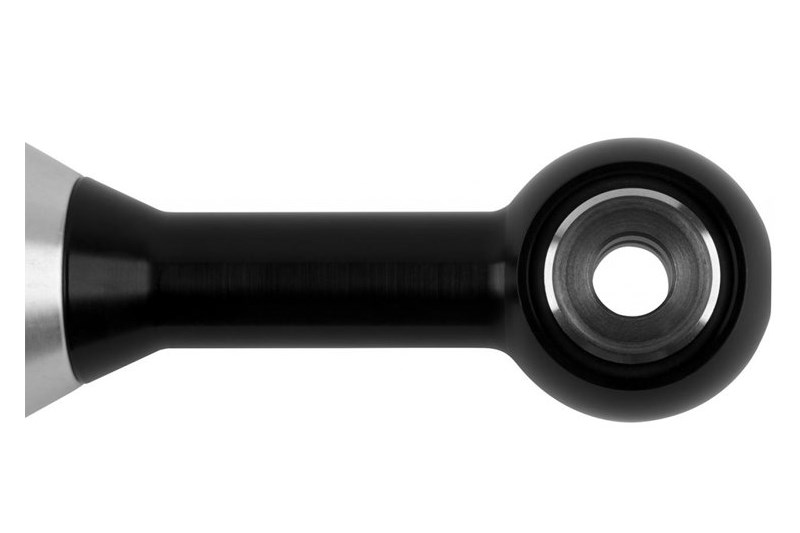

    Bottom mount: eyelet

Notes:

    Spring not included
    Not compatible with TRD Pro Springs
