Upgrade your Bronco with BDS KOH Edition Suspension Package
Transform your Bronco into the ultimate off-road machine with the BDS KOH Edition Suspension Package, trusted by KOH racers like Jason Scherer. Designed for durability and performance, this kit includes FOX 2.5 Performance Elite Series shocks, heavy-duty tubular upper control arms, steering tie rod sleeves and more to give you the stance, performance and clearance you need for up to 37-inch tyres.
The FOX 2.5 Performance Elite shocks offer unparalleled performance on and off the road, with remote reservoirs for improved cooling and DSC adjusters for precise tuning. Coupled with BDS upper control arms made from high-strength materials and equipped with maintenance-free rubber bushings, this suspension package gives your Bronco unmatched strength, flexibility and protection for a smooth ride over any terrain.
Specs:
FOX 2.5 Performance Elite Series coilovers offer improved damping performance over stock.
Performance upper control arms increase strength and allow for more travel
Rear trailing arms constructed from 1.9" OD heavy wall tubing
Factory-style rubber bushes for long life and low maintenance
Adjustable rear track bar for proper rear axle alignment
Steering tie rod bushes increase the diameter of the factory tie rods
Thick steel skid plates to protect shocks from damage
Max tyre clearance kit allows room for 37" tyres
Durable textured black powder coat finish
Fully assembled and ready to install straight out of the box

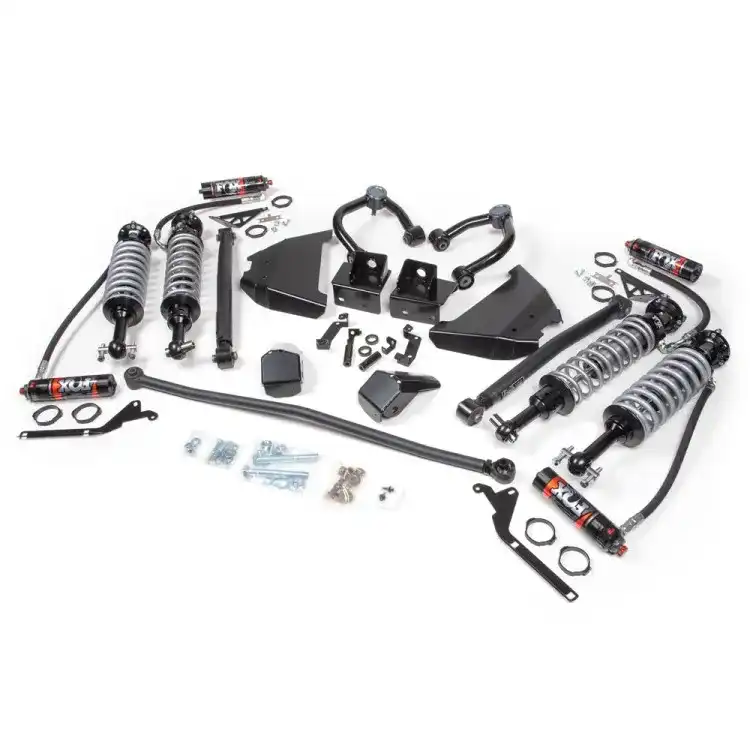

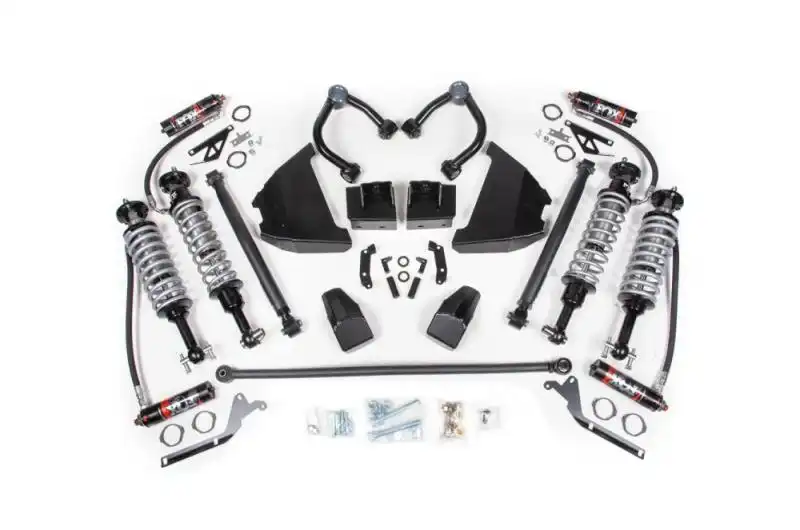

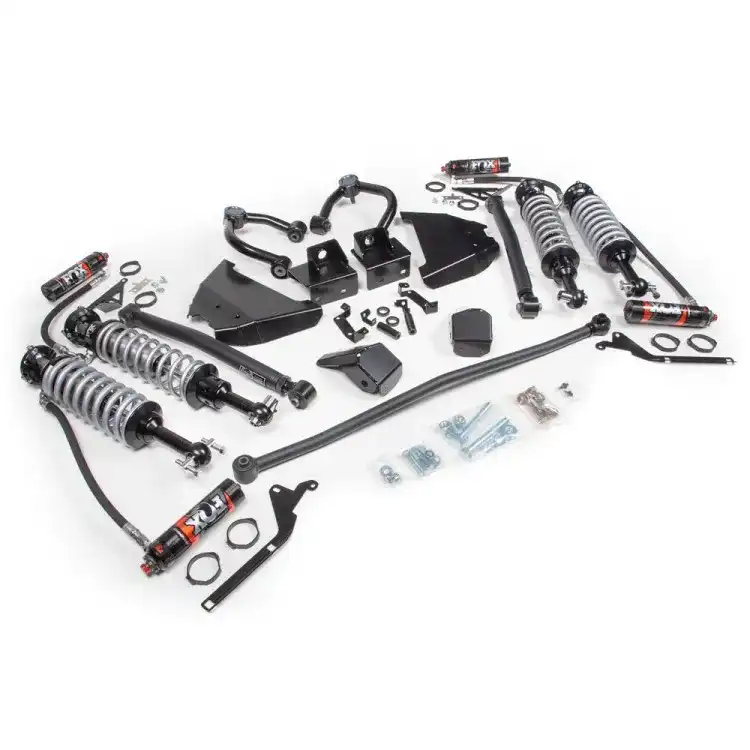

In the box:
(2) Performance Elite Series 2.5 KOH Edidion Front Coil-Over Reservoir
(2) Performance Elite Series 2.5 KOH Edidion Rear Coil-Over Reservoir
(2) Front control arm
(2) Rear control arm
Tie rod sleeve kit
Rear track bar
Suspension skid kit
Hardware
Notes:
Does not work on models with a height sensor attached to the UCA
Does not fit Bronco Sport models
Not compatible with HOSS 3.0 or Raptor models
Recommended wheel size 35" x 12.50" with 5.5" backspacing
On 37" x 12.50" there may be rubbing where cutting will be required
