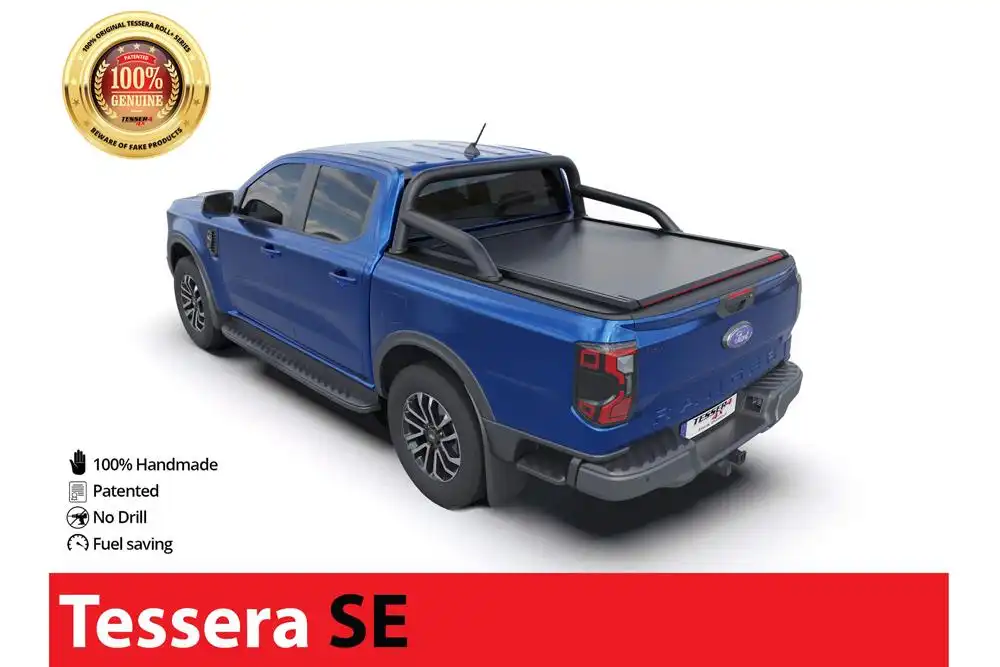

Tessera SE roll-up hood in matte black Ford Ranger (P703) 2023+ - For Dual Cab, compatible with or without Ford Roll bar
Price
1.590,00 EUR   VAT not included
Brand TESSERA4x4 title=
Delivery term 1 week
Quantity
Finish
Serves for
· FORD Ranger [2023-]

New generation 5-patent Tessera SE roller blind, available for Ford Ranger 2012+ (T6) & 2016+ (T7) & 2019+ (T8) double cab. Revolutionary design, versatility, durability, 100% handcrafted and with 3 years warranty on materials and workmanship.

- Easy and comfortable to use (no spring or motorized movement).

- Special aluminum side rails (5mm thick), with integrated "T-SLOTS" for easy and safe installation WITHOUT DRILLING of extra accessories such as: roll bars, cargo box handles and transverse luggage racks.

- Specially designed interior locking system with aluminum locking teeth to prevent unauthorized access. Use the strap to automatically unlock the Tessera SE and make your day-to-day life easier (better protection and use at low temperatures).

- Specially designed wider, stronger and "KNIFE-PROOF" slats for 100% load safety and rubber for maximum insulation.

- 2 specially designed Φ20 drainage systems with 2 overflow systems and integrated "ANTI-LEAF" technology in the drum area for complete drainage and water protection (60 liters/minute).

- The innovative design of the rear grid, combined with the smaller dimensions of the container (20 cm x 23 cm), offers the advantage of maximizing the net load capacity in both length and height.

- Specially designed container cover allows easy access and control of the Tessera SE.

- New generation of powder coating (Class 2) with fine texture and high resistance to weather conditions. The powder coating is applied in special ovens heated for 15 minutes at 190 °C.

- Easy installation on vehicles with or without bedliner. In such a case, it is very easy to install next to bedliner with or without edges, without the need to trim the top of the bedliner.

- Quick and easy installation without drilling holes.

- Aerodynamic design for increased fuel economy.

- The strongest and most durable aluminum roller blind on the world market (total weight of aluminum: 50 kg).


Easy and simple manual opening/closing operation

Operation of the new Tessera SE is easier than ever before thanks to its revolutionary design.

The opening-closing function of the Tessera SE is performed smoothly inside the canister without the need for a spring or electric motor.


Specially fabricated side rails (5mm thick)

Specially fabricated side rails (thickness: 5mm) that follow 100% the shape and design of the pickup box bores (length and width). As a result, this offers better insulation from weather conditions and a stronger and more durable installation procedure for all types of rollbars, cargo handles, side rails and other heavy duty items. It also gives you the flexibility to combine it with OEM accessories such as rollbars.
(Patent numbers: WO 2014/053863, No. 1008153, No. 1007595)

T-rail for the installation of accessories without drilling.

Side rails incorporate T-rails for easier and safer installation without drilling for extra accessories such as: rollbar, cargo handles, side rails or roof racks.


Definitive Security Systems

Internal Locking System (ILS)

Internal locking system specially designed to prevent unauthorized access. Unlock Tessera SE by simply pulling the strap or the internal locking handle and make your daily life easier. Better protection and use at low temperatures.

Aluminum locking teeth (ALT)

The only shutter with automatic closing teeth in aluminum (not plastic) for maximum load safety.

Ultimate Weather Resistance System.
Two main drains inside the louver box. Two specially designed oversized Φ20 drains with 2 overflow systems inside the shutter box, tested to last even in the most extreme weather conditions (60 liters/min).



Side drains in the rails

Two large drains specially designed and integrated into the side rails.



The exclusive Anti-Leaf System (ALS) - Anti-Leaf System.

The world's only shutter with an anti-clogging system (anti-leaf system) to protect drains from leaves and debris.
(Patent number: EP19151572.5)

Our surface - our shield

Specially designed sheets with integrated silicone gasket for the best protection on rainy days.



Perfect protection

Provides the perfect protection for any type of climate and weather conditions thanks to the combination of sealed side rails together with our specially designed blades.


Maximum load capacity

An innovative design of the rear cross member in combination with the smallest shutter box (Double cab 20cm x 23cm (AxA) & Super/Extra cab / Single cab / American models 26cm x 30cm (AxA)) offers the advantage of maximizing the net load capacity in both length and height.


Easy access to the shutter box at any time

Specially designed shutter box cover to allow access to and control of your Tessera SE

Headroom

The Tessera SE continues its legacy (from the Tessera4x4 Roll SOT-ROLL series) and rests on the edge of your pickup's body, giving you more headroom under the shutter.


BEDLINER? NO PROBLEM

It can be easily installed on vehicles with or without bedliner. In such a case, it is very easy to install it next to bedliner without borders or with borders, without the need to trim the upper part of the bedliner.


We have become even faster

Extremely quick and easy installation, no need to drill holes in the vehicle body (drilling is required for the installation of certain extra accessories (such as roll bars, side bars, load bars, etc.) for heavy duty applications and water drains (no bed liners).


Our latest generation powder-coat finish

New generation of super durable fine textured powder-coat finish. Due to its high resistance to aging (3 years in Florida), it is a recommended finish for architectural and other demanding applications where gloss, color retention and long-term aesthetics are of significant importance.
SUPERIOR SPECIFICATIONS:
✓ Exceptional abrasion resistance.
✓ Increased chemical resistance.
✓ Low sensitivity to contamination.
✓ Supreme coverage on edges and edges that reduce the risk of corrosion.
✓ Stable structure in different film thicknesses.
✓ High transfer efficiency and very good penetration for difficult areas.
✓ High adhesion due to low density.
✓ All PP 600 Ammos products are lbires of TGIC and heavy metals.
✓ PP600 Ammos is a QUALICOAT approved product for Class 2- Category 1 (Approval number: P-0780).
✓ Neokem employs environmental and quality management systems certified to: ISO 9001:2015 and ISO 14001:2015.
✓ PP 600 Ammos is applied at a thickness of 60-100 microns by electrostatic spray or trio-charging equipment to ensure full coverage and color homogeneity.
✓ Curing of the powder occurs in a suitable convection oven for 15min at 190 °C.

Aerodynamics for improved fuel economy

Contributes to vehicle aerodynamics and overall driving experience especially at high speeds or on windy days. Also offers more favorable fuel efficiency.
